MOTOR PROTECTION RELAY

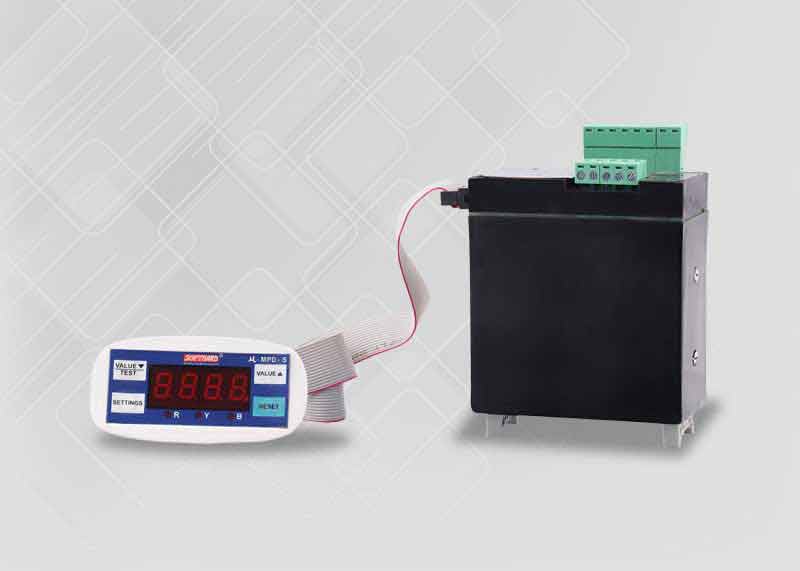

S-DXA Motor Protection Relay
Current range
0.25 TO 5 Amp0.8 TO 5 Amp4 TO 61 Amp40 TO 500 Amp
Enquire about this productTECHNICAL INFORMATION
Know your product.
Product Details
| Aux Supply | 110 VAC OR 230 VAC OR 415 VAC |
|---|---|
| CT Type | In built Phase CT up to 61 A & External CTs for above 61 A |
| Voltage Type | AC |
| Display | Current through 7 Segment LED |
| Mounting | Device DIN Rail Mount / Display Door Mount [Door Cut out 70 X 30 mm] |
| Output Contact | P-NO-NC [ 3 A 240 VAC] |
Protections
- Single Phasing Protection
- Over Load Protection
- Under Load Protection
- Phase-reversal Protection
- Phase Un-balance
- Locked Rotor Protection
- Short Circuit Protection
- Earth Fault Protection
Annunciations
- SPP
- O
- U
- Ph-r
- b
- L
- S
- E
