MOTOR PROTECTION RELAY

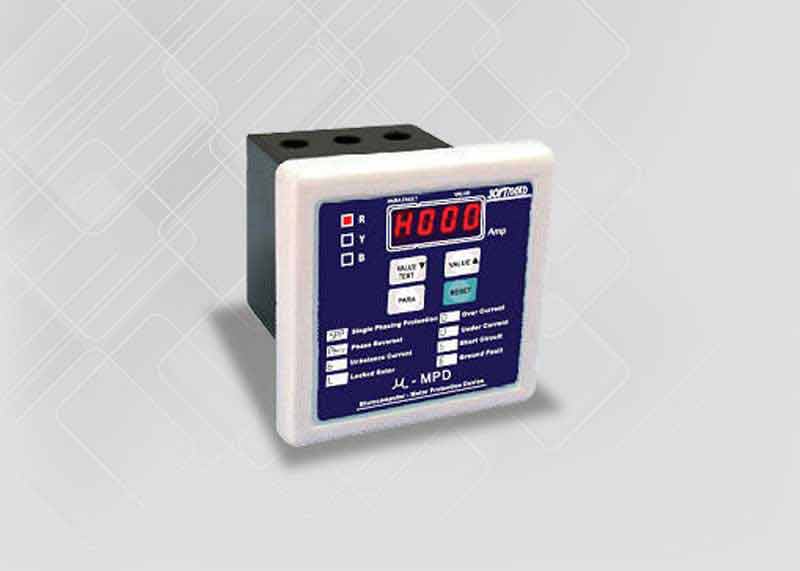

EC - Motor Protection Relay
Current range
0.25 TO 5 Amp0.8 TO 5 Amp4 TO 61 Amp40 TO 500 Amp
Enquire about this productTECHNICAL INFORMATION
Know your product.
Product Details
| Aux Supply | 110 VAC OR 230 VAC OR 415 VAC |
|---|---|
| CT Type | In built Phase CTs up to 61 A & External Phase CTs above 61 A |
| Voltage Type | AC |
| Temperature | +10 TO 60 Degree C [Operation] |
| Display | Current through 7 Segment LED |
| Mounting | Door Mount [Door Cut out 92 X 92 mm] |
| Output Contact | P-NO-NC [3 A 240 VAC] |
Protections
- Single Phasing Protection
- Under Load Protection
- Phase Un-balance
- Phase-reversal Protection
Annunciations
- SPP
- OL
- UL
- Ub
- Ph-r
